Containing Corrosive Liquids with Fiberglass Sumps
The material choice for containment sumps is as important as it is for tanks. When storing corrosive liquids like fuel products, corrosion-resistant fiberglass sumps provide numerous benefits, including reliable, maintenance-free containment through the life of the installation. Sumps serve dual functions in fuel tank installations: as a reliable enclosure for fittings and equipment – such as piping and pumps – and for secure containment of spills or piping leaks should they occur.
Technology
Engineered product backed by decades of proven installation
Compatibility
With all current-generation
fuel products
Monitoring
Hydrostatic & dry monitoring options for double-wall sumps
Design
For precision fit with Xerxes containment collars & covers
Adhesive and laminate field-bonding options for any type of installation
Xerxes containment sumps are available with two types of joints for field bonding:
- U-channel adhesive joint for single-wall sumps for burial up to 7 feet
- Fiberglass-laminated joints for all deep burial applications of single-wall sumps, and for all double-wall sump installations
Why choose Xerxes containment sumps?
- Available in single-wall and double-wall models
- Backed by decades of proven installation
- Built to the same standards as Xerxes fuel tanks
- Designed for easy installation
- Available for deep burials (over 7 feet)
- Delivered with tanks so no delay in installation
- Maintenance-free over life of the tank
Xerxes Containment Sump Lineup
|
|
Lever-Lock Cover
 |

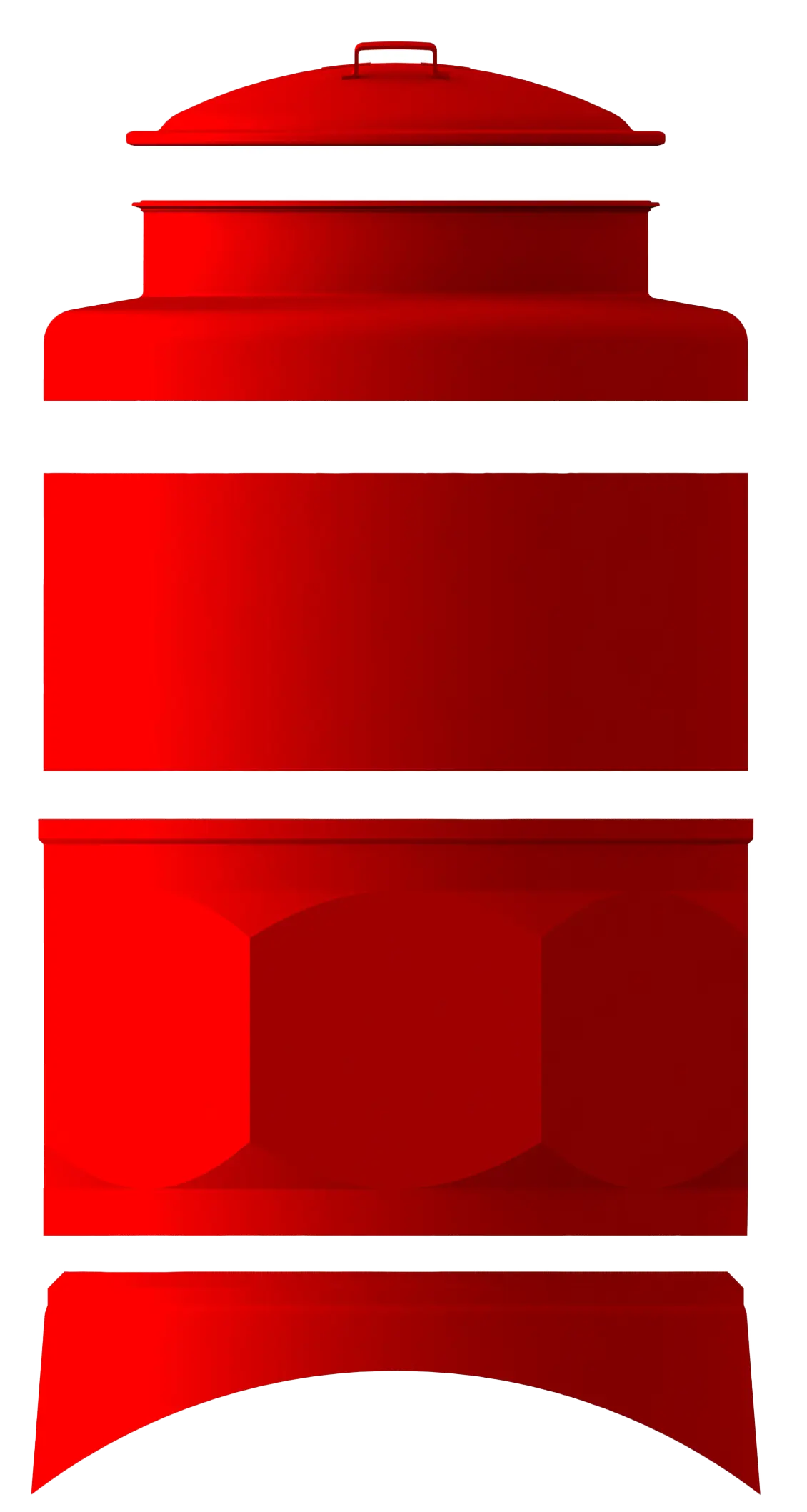

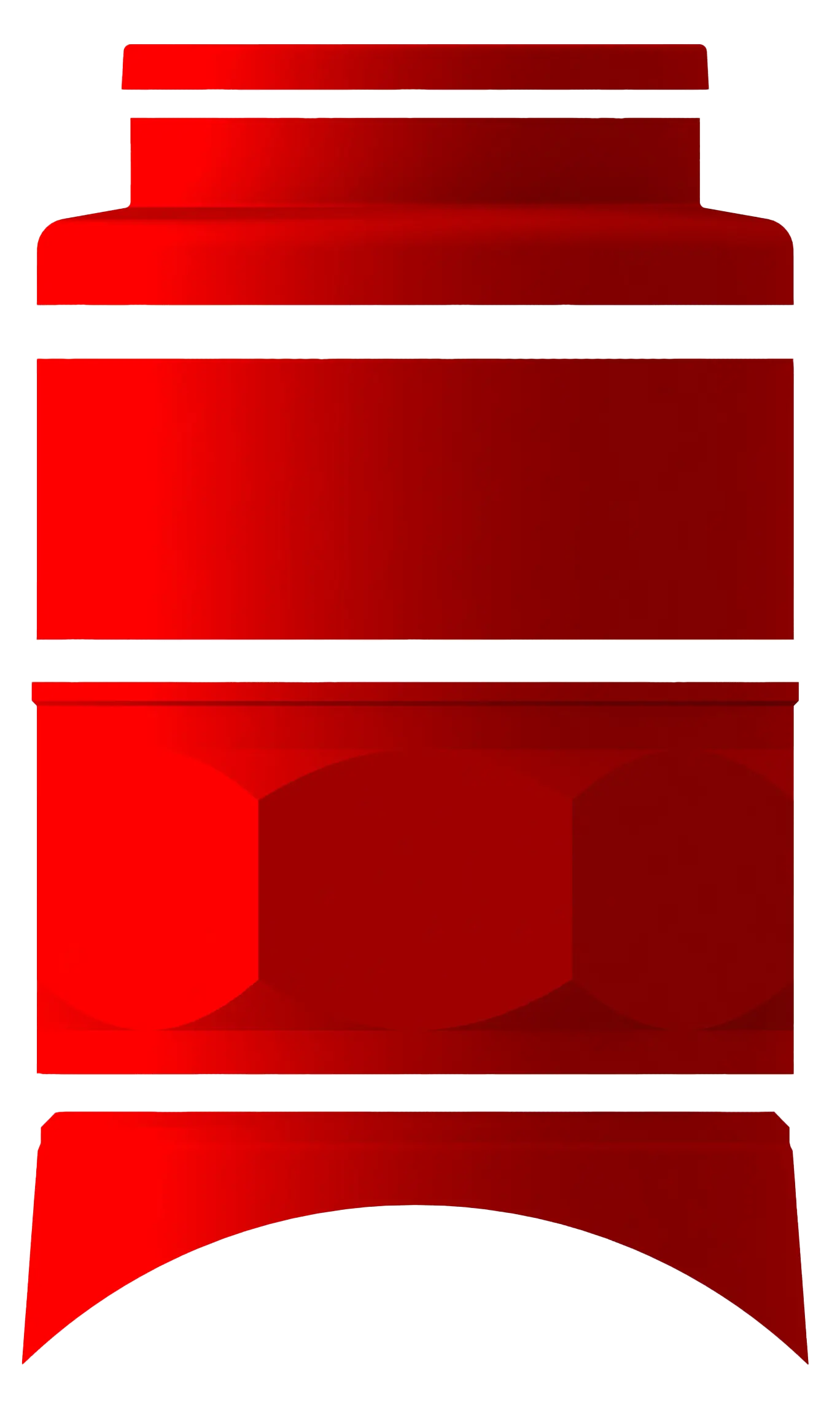

Watertight Cover
 |
Open Top
 |
|
|---|---|---|---|---|
|
Single-Wall
|
|
|
|
|
|
Double-Wall
|
|
|
|
|
|
Opening Diameter
|
30 inch
|
32, 36, & 38 inches
|
37.25 inch
|
|
|
Opening Inner Diameter
|
29 inch
|
32, 36, & 38 inches
|
36.75 inch
|
|
|
42 & 48 inches
|
42, 48, & 64 inches
|
54 inch
|
||
|
Height
|
36 inch - 84 inch (12-inch increments)
|
|||
|
|
Lever-Lock Cover
 |
Watertight Cover
|
|---|---|---|
|
Single-Wall
|
|
|
|
Nominal Diameter
|
30 inch
|
32, 36, & 38 inches
|
|
Opening Inner Diameter
|
29 inch
|
32, 36, & 38 inches
|
|
42 & 48 inches
|
||
|
Height
|
36 inch - 84 inch (12-inch increments)
|
|
