Reinforced Composite Matters: S-22 Chamber
The S-22 is molded from a fiberglass reinforced thermosetting plastic, which gives these chamber greater durability than unreinforced HDPE and PP chambers. Besides adding strength and stiffness, S-22 composite chambers are also highly resistant to corrosion. When this chamber model is determined to be the best solution for a project’s stormwater management needs, the Xerxes experts provide a cost-effective, site-specific design that provides a long service life.
Designed to meet industry standards, they are evaluated and tested according to the methodology of ASTM F2418 and F2787.
Material
Fiberglass-reinforced
plastic (FRP)
Industry standards
ASTM F2787, F2418, AASHTO LRFD Bridge Design Specifications
Cover
Height
1.5 ft (0.457 m) minimum
13 ft (3.6 m) maximum
Nominal
L x W x H
(703mm x 1397mm x 889mm)
Start Designing Your Stormwater System
Chamber Design Calculator
To select a product and create a custom design – including a BOM (Bill of Materials) – use the Chamber Design Calculator.
Stage Storage Calculator
To estimate the volume of storage at different water levels in a HydroChain stormwater system, use the Stage Storage Calculator.
Stormwater Chamber
Success Story
Dubai, United Arab Emirates

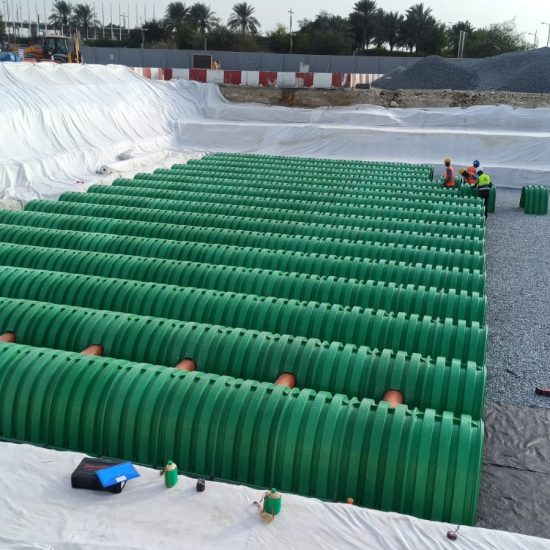

In climates where storms are infrequent – like Middle Eastern countries – rain hitting dry, hard earth can result in flash floods. This is why facilities like the Dubai World Trade Centre are installing underground stormwater management systems. A recent expansion of the Trade Center’s Exhibition Centre required a robust infiltration system to manage stormwater runoff.
Designed to handle large storm events, the system is comprised of several thousand fiberglass-reinforced plastic S-22 chambers that provides close to 14,000 cubic meters of storage. These chambers are higher strength and more durable than traditional attenuation systems, which results in a reliable long-life system.
