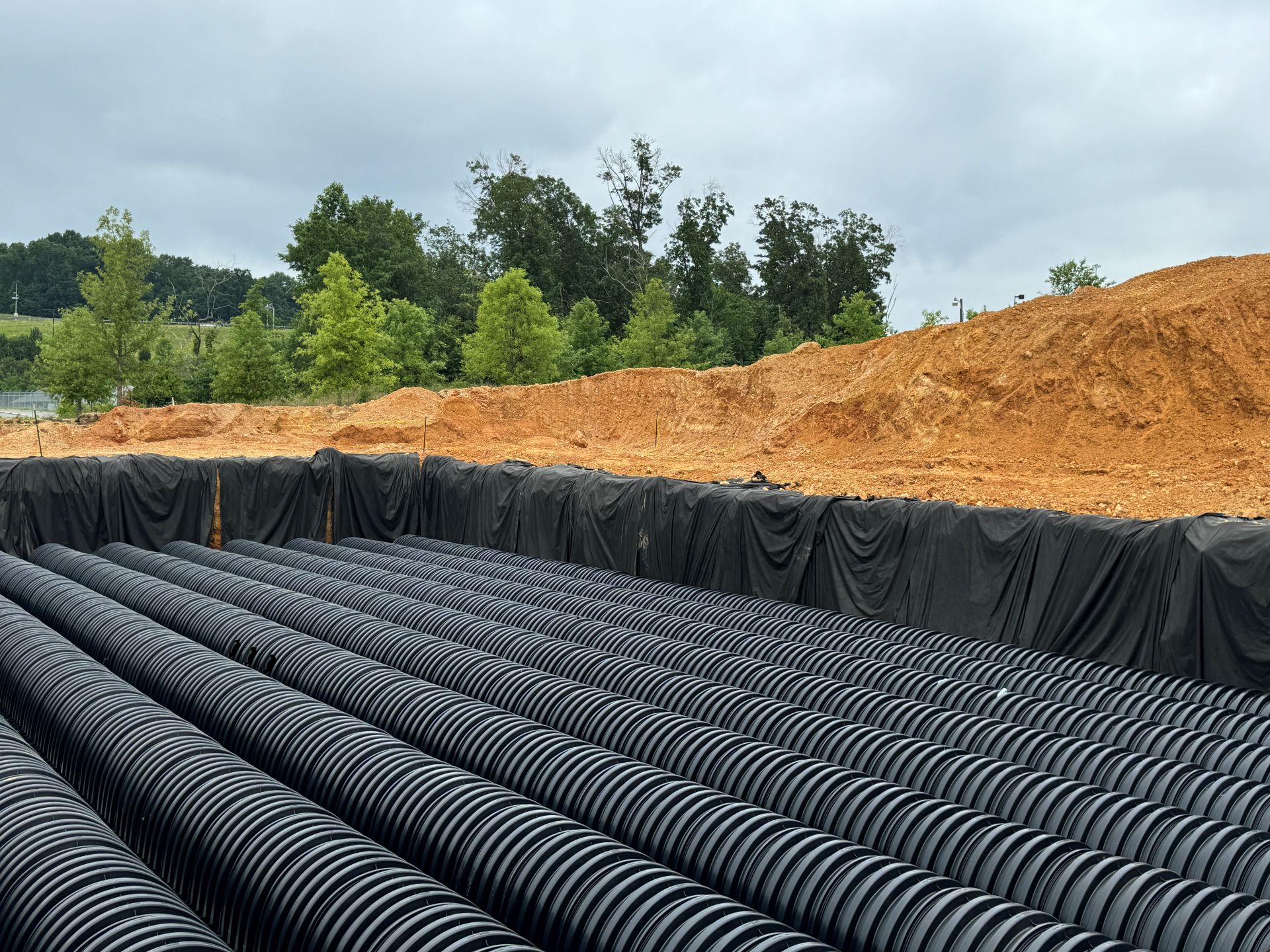

Creating Robust Stormwater Systems with Reinforced Composites
Superior to aboveground detention and retention ponds, expertly engineered, high-strength composite chambers are the preferred means of managing stormwater. A rural or urban setting? Extreme weather events or flash floods? Reinforced composite chambers are the ideal solution to handle any volume of runoff – and keep polluted runoff from endangering groundwater and water sources.
Storage & Infiltration Products
|
Product Properties
|
M-6 Chamber
 |
C-10 Chamber
 |
S-22 Chamber
 |
S-29B Chamber
 |
|
|---|---|---|---|---|---|
|
Nominal dimensions
(layup length x
width x height)
|
29.58" x 33.61" x 17.5"
(751 mm x 854 mm x 445 mm) |
29.58" x 39.70" x 25.00"
(751 mm x 1008 mm x 635 mm) |
27.66” x 55.00” x 35.00”
(703mm x 1397mm x 889mm) |
33.35" x 61.76" x 37.27"
(847 mm x 1569 mm x 947 mm) |
|
|
Bare chamber
storage
|
5.6 ft³
(0.159 m³) |
9.8 ft³
(0.277 m³) |
21.57ft³
(0.511 m³) |
27.8 ft³
(0.787 m³) |
|
|
Minimum installed storage¹
|
11.36 ft³
(0.322 m³) |
17.45 ft³
(0.494 m³) |
31.30 ft³
(0.886 m³) |
42.07 ft³
(1.191 m³) |
|
|
Product weight
|
14 lbs
(6.35 kg) |
18 lbs
(8.17 kg) |
28 lbs
(12.701 kg) |
34 lbs
(15.42 kg) |
|
|
Stone above (minimum)
|
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
|
|
Stone below (minimum)
|
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
6 in
(152 mm) |
|
|
Minimum cover depth²
|
18 in
(457 mm) |
18 in
(457 mm) |
18 in
(457 mm) |
14 in
(356 mm) |
|
|
Maximum cover depth³
|
13 ft
(3.96 m) |
13 ft
(3.96 m) |
13 ft
(3.96 m) |
14 ft
(4.267 m) |
|
|
¹ With minimum stone depth above and below, and 40% stone porosity.
² Minimum cover of the Aquamod can be reduced to 12 in (0.3 m) for some installations. Contact Xerxes for details. ³ Maximum cover of Aquamod varies with the number of layers. The maximum module base of the bottom layer to grade is stated in table. |
|||||
|
|
|||||
Start Designing Your Stormwater System

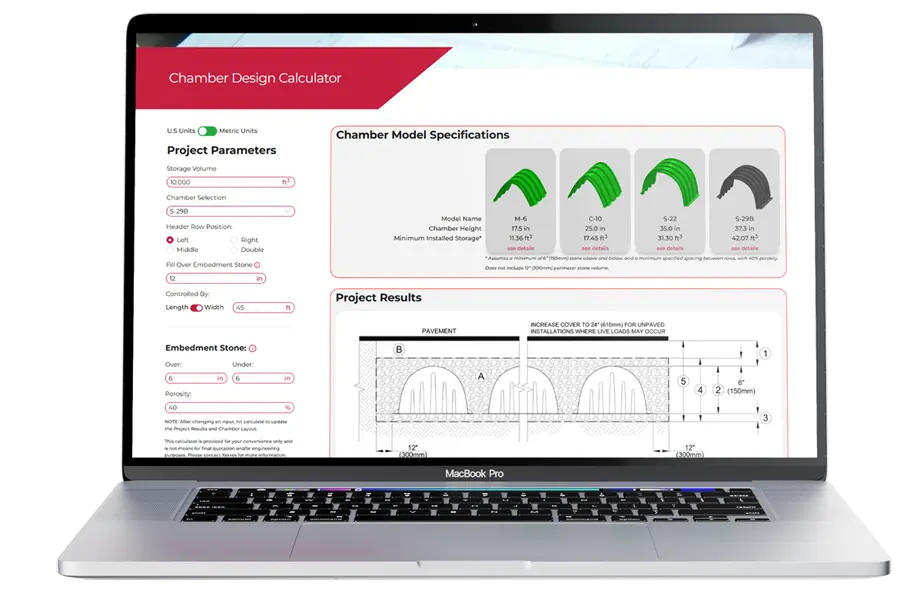

Chamber Design Calculator
To select a product and create a custom design – including a BOM (Bill of Materials) – use the Chamber Design Calculator.
Stage Storage Calculator
To estimate the volume of storage at different water levels in a HydroChain stormwater system, use the Stage Storage Calculator.
45+
years of composite
underground storage
vessel manufacturing
designed by in-house
stormwater experts
20+
treatment technology
Storage and infiltration
products available in
HydroCad
Stormwater Chamber Success Story
Eastern Tennessee
As the price of land continues to increase, businesses like national convenience store chains increasingly utilize the footprint under their parking area for stormwater management systems. This approach saves space aboveground for other uses while providing a cost-effective, long-term system.
For years, Xerxes fiberglass tanks, backed by a 30-year limited warranty, have been the tank of choice for fuel storage at North America’s major c-store chains. Today more and more of those same chains are choosing HydroChain fiber-reinforced composite stormwater chambers or crates, with a service life of 50+ years.

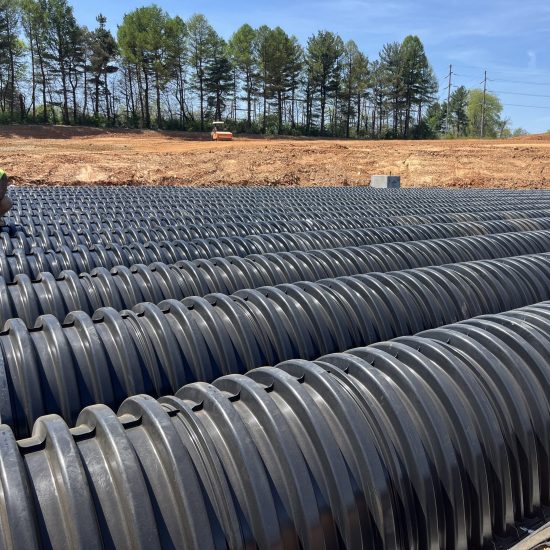

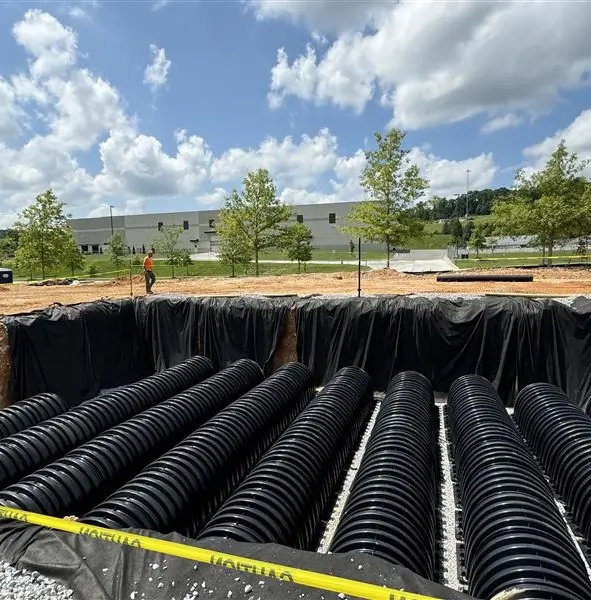

This new c-store, located off a busy interstate exchange in eastern Tennessee, used nine Xerxes double-wall tanks to securely store fuel products, and over 700 HydroChain S-29B chambers to store nearly 36,000 cubic feet of stormwater.
